Swing Door Storage Cupboard
A concealed storage solution is provided with our swing door cupboards.
These cupboards are economical on space and are designed for maximum storage capacity.
The cupboards can be used for several purposes and are built from durable components to withstand frequent use.
The swing door storage cupboard has been tested for strength, durability, stability and function to Australian / New Zealand Standards AS / NZS 4790 and to British Standards BS 4875-7 and BS 4875-8.
Certified in 2009
in UK
Certified in 2009 & 2014
in AUSTRALIA
Description
Description

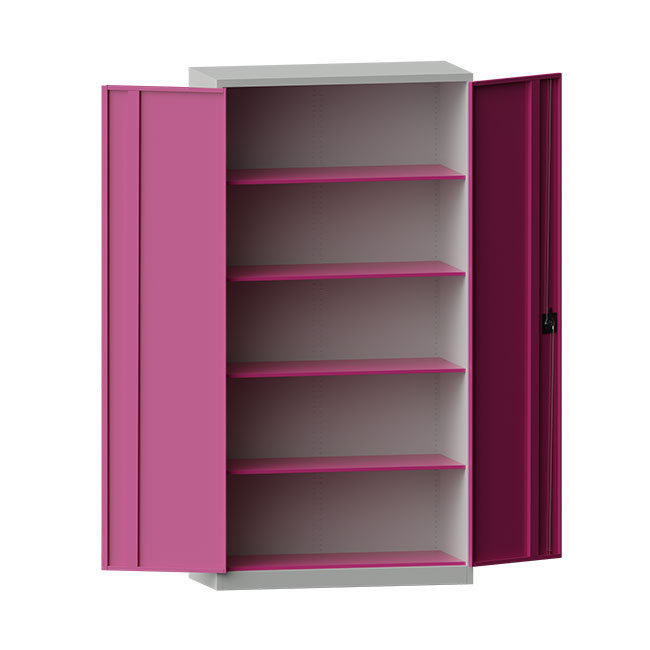

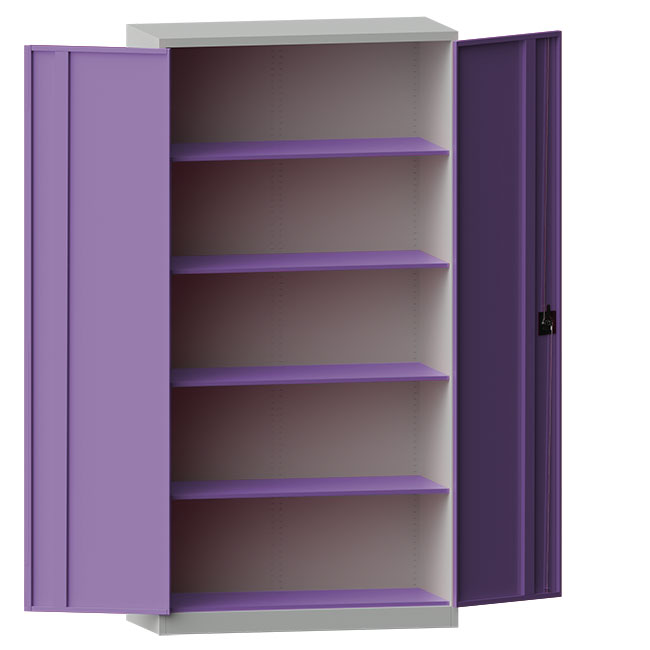

FHC 4
ر.ع.0.00
Full height cupboard with 4 adjustable shelves
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC 4 | 1,830 (72.0”) | 914 (36.0”) | 406 (16.0”) |
| 1,830 (72.0”) | 914 (36.0”) | 463 (18.2”) | |
| FHC 4 SPL | 1,950 (76.8”) | 914 (36.0”) | 463 (18.2”) |
| 2,000 (78.7”) | 1,000 (39.4”) | 500 (19.7”) |
Measurements are in millimeters (approx. inches)
Description

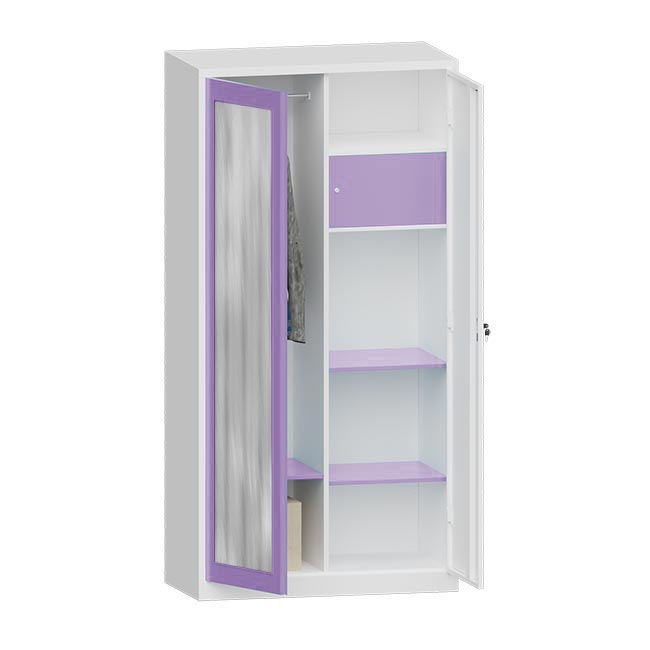

FHC FP 3 HL HHR MRF
ر.ع.0.00
Full height cupboard with full centre partition, 3 adjustable half shelves, full length mirror frame [1524(60.0”) x 305 (15.0”)], half locker and one half hanging rod.
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC FP 3 HL HHR MRF | 1,830 (72.0”) | 914 (36.0”) | 463 (18.2”) |
Measurements are in millimeters (approx. inches)
Description
FHC PW FP 4 HHR IRD MRF WM
ر.ع.0.00
Full height cupboard with full centre partition, 4 adjustable half shelves, mirror frame [242 (9.5”) x 162 (6.4”)] with mirror on the inside of the right door and one half hanging rod.
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC PW FP 4 HHR IRD MRF WM | 1,830 (72.0”) | 914 (36.0”) | 463 (18.2”) |
Measurements are in millimeters (approx. inches)
Description
Description

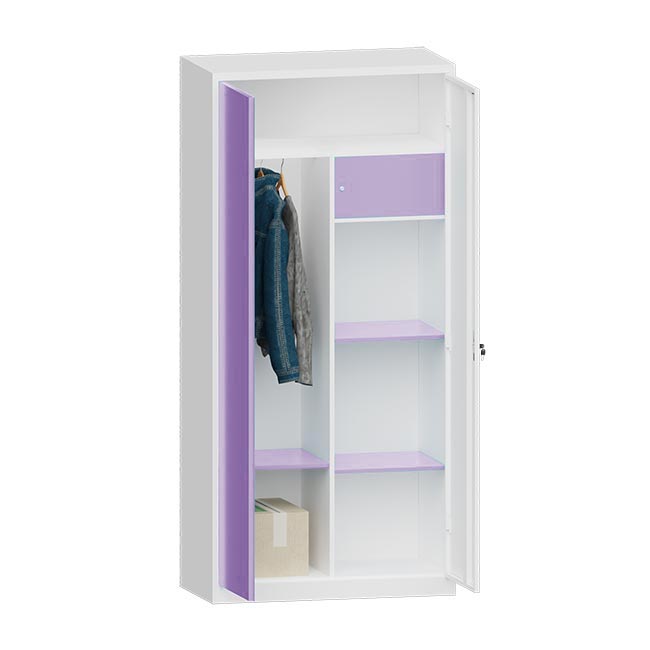

FHC FS HP 3 HL HHR
ر.ع.0.00
Full height cupboard with one fixed shelf at the top, centre partition below the fixed shelf, 3 adjustable half shelves, one half locker on the right side and one half hanging rod
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC FS HP 3 HL HHR | 1,830 (72.0”) | 914 (36.0”) | 463 (18.2”) |
Measurements are in millimeters (approx. inches)
Description
FHC FS HP 3 ED HHR
ر.ع.0.00
Full height cupboard with 1 fixed shelf at the top, centre partition below the fixed shelf, 3 adjustable half shelves, one full extension half drawer on ball bearing slides with lock and one half hanging rod
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC FS HP 3 ED HHR | 1,830 (72.0”) | 914 (36.0”) | 463 (18.2”) |
Measurements are in millimeters (approx. inches)
Description
FHC FP 3 HL HHR ILD MRF WM
ر.ع.0.00
Full height cupboard with 3 adjustable half shelves, mirror frame [610 (24.0”) x 260 (10.2”)] with mirror on the inside of the left door, full center partition, half locker and one half hanging rod.
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC FP 3 HL HHR ILD MRF WM | 1,830 (72.0”) | 914 (36.0”) | 545 (21.4”) |
Measurements are in millimeters (approx. inches)
Description
FHC FSB HP 1 HL HHR
ر.ع.0.00
Full height cupboard with 1 fixed shelf at the top, centre partition below the fixed shelf, 1 fixed half shelf at the bottom, one half locker on the left side and one half hanging rod on the right side and with one metal handle and with three way locking mechanism with one latch lock for pad locking purpose.
| Model | Height | Width | Depth |
|---|---|---|---|
| FHC FSB HP 1 HL HHR | 1,980 (78.0”) | 755 (29.7”) | 500 (19.7”) |
Measurements are in millimeters (approx. inches)
Description
Range of Colours
STANDARD COLOURS
NON STANDARD COLOURS
PREMIUM COLOURS
TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLOURS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON STANDARD, PREMIUM AND TEXTURE FINISH COLOURS.
KEY FEATURES
- 10 years warranty as per clause.
- Plain shelf / Dual purpose shelf / Lateral rail.
- Dual purpose shelf can be used as a standard shelf and also for suspending files.
- Lateral rails can be utilized for suspending files.
- Each shelf is placed on five retaining clips, thereby providing additional rigidity and support.
- Adjustable shelves at 32 mm pitch (1.3”), for convenient storage.
- Uniformly distributed load of 30 kg per shelf.
- Swing doors are secured by a 3 way bolting device and a recessed handle cum lock.
- Doors are fitted with heavy duty invisible hinges for security and prevention of tampering from the outside. Internal hinges also enhance the appearance of the cupboard.
- Doors are reinforced internally for extra strength.
- Multiple bend construction, thereby imparting greater rigidity and strength.
- Formed steel legs with height of 100 mm (3.9”) can also be provided.
- Core removable locks can be provided on request.
- Master keys can be supplied for locks.
- Locks have 1,000 / 3,000 combinations.
- Mirror frame can be provided on the internal or external part of the door.
- Sloping top can be provided for standard dimensions of the cupboard (914 w x 463 d mm).
- Security bar can be provided for each cupboard for additional protection.
- PVC label holder can be supplied on request for each door.
- Swing door cupboards are packed in completely knocked down condition.
- Cupboards can also be 100% factory built and shipped fully assembled.
- Thicker gauges of steel can be offered.
- Fastener free assembly ensures quick assembly without the use of screws or rivets.
LOCK OPTIONS
Recessed Handle cum Cam Lock (A)
Recessed Handle cum Cam Lock (B)
Numeric Lock
Latch Lock
OPTIONAL ACCESSORIES
Coat Hook
Formed Steel Legs 100 mm height
Sloping Top
Security Bar with Padlock
Swing Door Storage Cupboard
| Sl. No. | Product | Packing Volume in CBM |
Product Dimensions in mm | ||
| H | W | D | |||
Packing volume (CKD) and product dimensions |
|||||
| 1 | HHC with 1 shelf | 0.09 | 914 | 914 | 463 |
| 2 | HHC with 2 shelves | 0.09 | 914 | 914 | 463 |
| 3 | HHC 1 and W/O doors | 0.07 | 914 | 914 | 463 |
| 4 | HHC 2 and W/O doors | 0.07 | 914 | 914 | 463 |
| 5 | HHC 1 SPL HT(1,016 mm) | 0.11 | 1,016 | 914 | 463 |
| 6 | HHC 2 SPL HT(1,016 mm) | 0.11 | 1,016 | 914 | 463 |
| 7 | FHC with 3 shelves | 0.16 | 1,830 | 914 | 463 |
| FHC with 4 shelves | 0.16 | 1,830 | 914 | 463 | |
| 8 | FHC with 4 shelves and W/O doors | 0.13 | 1,830 | 914 | 463 |
| 9 | FHC with 4 shelves special depth (406 mm) | 0.15 | 1,830 | 914 | 463 |
| 10 | FHC with 4 shelves special height (1,950 mm) | 0.17 | 1,950 | 914 | 463 |
| 11 | FHC with 4 shelves special height (2,000 mm) | 0.19 | 2,000 | 1,000 | 500 |
| 12 | FHC with 2 shelves and hanging rod | 0.16 | 1,830 | 914 | 463 |
| 13 | FHC with 2 shelves and hanging rod, mirror frame on the door | 0.16 | 1,830 | 914 | 463 |
| 14 | FHC with full partition 4 half shelves, half hanging rod | 0.16 | 1,830 | 914 | 463 |
| 15 | FHC with fixed shelf, half centre partition, half locker, 3 half shelves, half hanging rod | 0.16 | 1,830 | 914 | 463 |
| 16 | FHC with full partition, 3 half shelves, half locker, half hanging rod, mirror frame on the door | 0.16 | 1,830 | 914 | 463 |
| 17 | FHC with full partition , 4 half shelves, half hanging rod, mirror frame on the door | 0.16 | 1,830 | 914 | 463 |
| 18 | FHC with fixed shelf, half partition, 2 half shelves, extension drawer, half hanging rod | 0.16 | 1,830 | 914 | 463 |
| 19 | Extra shelf for all models of cupboards | 911 | 427 | ||
| 20 | Extra half shelf for all models of cupboards | 454 | 416 | ||
| 21 | Mirror frame for FHC | 1,524 | 305 | ||
| 22 | Sloping top for FHC | 280 | 914 | 463 | |
| 23 | Formed steel leg for all models of cupboards | 100 | |||
