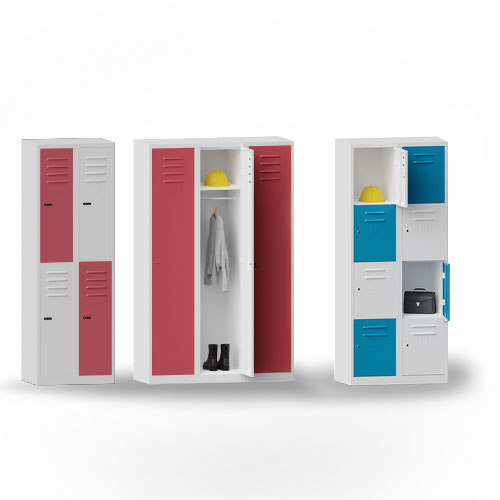

Locker Cabinet
Modern ventilation concepts and a variety of locking systems define the locker cabinets manufactured at Godrej and Khimji.
These locker cabinets provide a functional solution for securing personal storage in offices, factories, schools, universities, health and fitness clubs and other commercial premises.
The range incorporates a combination of modules with a choice of single, two, three, four, five and six door compartments.
The locker cabinet has been tested for strength, durability, stability and function to Australian / New Zealand Standards AS/NZS 4790 and to British Standard BS 4680.
Certified in 2009
in UK
Certified in 2009 & 2014
in AUSTRALIA
Description
LC 1 / LC 1 SPL
ر.ع.0.00
One compartment locker cabinet with one shelf and one hanging rod
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 | 1,800 (70.9”) | 380 (15.0”) | 457 (18.0”) |
| LC 1 SPL | 1,800 (70.9”) | 305 (12.0”) | 305 (12.0”) |
| 1,830 (72.0”) | 305 (12.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 600 (23.6”) | |
| 1,830 (72.0”) | 500 (19.7”) | 500 (19.7”) | |
| 1,800 (70.9”) | 500 (19.7”) | 600 (23.6”) |
Measurements are in millimeters (approx. inches)
Description
LC 2 ES / LC 2 ES SPL
ر.ع.0.00
Two compartment locker cabinet with one fixed shelf and one hanging rod in each compartment
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 2 ES | 1,830 (72.0”) | 380 (15.0”) | 457 (18.0”) |
| LC 2 ES SPL | 1,830 (72.0”) | 305 (12.0”) | 305 (12.0”) |
| 1,830 (72.0”) | 305 (12.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) | |
| 2,000 (78.7”) | 600 (23.6”) | 600 (23.6”) |
Measurements are in millimeters (approx. inches)
Description
LC 1 SPT PD
ر.ع.0.00
One compartment locker cabinet with one shelf and one hanging rod and with perforations [4.5 (0.18”) diameter or 16.0 (0.63”) square] along the entire door.
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 SPT PD | 1,830 (72.0”) | 380 (15.0”) | 457 (18.0”) |
Measurements are in millimeters (approx. inches)
Description
LC 1 ES / LC 1 ES SPL
ر.ع.0.00
One compartment locker cabinet with two fixed shelves and one hanging rod
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 ES | 1,830 (72.0”) | 380 (15.0”) | 457 (18.0”) |
| LC 1 ES SPL | 1,830 (72.0”) | 305 (12.0”) | 305 (12.0”) |
| 1,830 (72.0”) | 305 (12.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) | |
| 2,000 (78.7”) | 380 (15.0”) | 457 (18.0”) | |
| 2,000 (78.7”) | 600 (23.6”) | 600 (23.6”) |
Measurements are in millimeters (approx. inches)
Description
LC 2 / LC 2 SPL
ر.ع.0.00
Two compartment locker cabinet with one hanging rod in each compartment
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 2 | 1,830 (72.0”) | 380 (15.0”) | 457 (18.0”) |
| LC 2 SPL | 1,830 (72.0”) | 305 (12.0”) | 305 (12.0”) |
| 1,830 (72.0”) | 305 (12.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 500 (19.7”) | 900 (35.4”) |
Measurements are in millimeters (approx. inches)
Description
LC 3 / LC 3 SPL
ر.ع.0.00
Three compartment locker cabinet
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 3 | 1,830 (72.0”) | 380 (15.0”) | 457 (18.0”) |
| LC 3 SPL | 1,830 (72.0”) | 305 (12.0”) | 305 (12.0”) |
| 1,830 (72.0”) | 305 (12.0”) | 457 (18.0”) | |
| 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) | |
| 2,000 (78.7”) | 500 (19.7”) | 600 (23.6”) |
Measurements are in millimeters (approx. inches)
Description
Description
Description
Description
LC 1 FS 2 HP 3 HHR
ر.ع.0.00
One compartment locker cabinet with centre partition between the 2 fixed shelves and with one hanging rod on right side and 3 half fixed shelves on the left side.
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 FS 2 HP 3 HHR | 1,830 (72.0”) | 457 (18.0”) | 457 (18.0”) |
Measurements are in millimeters (approx. inches)
Description
LC 1 FS 1 HP 3 HHR
ر.ع.0.00
One compartment locker cabinet with 1 fixed shelf at the top, centre partition below the fixed shelf and with one hanging rod on right side and 3 half shelves on the left side and with perforated holes at the top and bottom and with a PVC label holder.
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 FS 1 HP 3 HHR | 1,830 (72.0”) | 600 (23.6”) | 457 (18.0”) |
Measurements are in millimeters (approx. inches)
Description
LC 1 ES x 2 MRF WM 2 SPL
ر.ع.0.00
Two single compartment locker cabinet with two fixed shelves, two hanging rods, mirror frame [250 (9.8”) x 200 (7.9”)] with mirror on the outside of each door, three way locking mechanism, PVC label holder on each door and doors opening clock wise and anti clock wise.
| Model | Height | Width | Depth |
|---|---|---|---|
| LC 1 ES x 2 MRF WM 2 SPL | 2,100 (82.6”) | 457+457 (18.0+18.0”) | 480 (18.9”) |
Measurements are in millimeters (approx. inches)
Range of Colours
STANDARD COLOURS
NON STANDARD COLOURS
PREMIUM COLOURS
TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLOURS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON STANDARD, PREMIUM AND TEXTURE FINISH COLOURS.
KEY FEATURES
- 10 years warranty as per clause.
- Standard locker cabinets are also available in widths of 305 mm (12.0”) and 457 mm (18.0”) and depths of 305 mm (12.0”) and 457 mm (18.0”).
- Door is provided with ventilation louvres / cluster holes, a label holder and a cam lock.
- Doors are fitted with heavy duty invisible hinges for security and prevention of tampering from the outside. Internal hinges also enhance the appearance of the locker cabinet.
- Doors are reinforced internally for extra strength.
- Doors are fitted with PVC bangers for quiet operation.
- Sloping top can be provided for standard dimensions of the locker cabinet (380 (15.0”)w x 457(18.0”)d mm).
- Formed steel legs with height of 100 mm (3.9”) can also be provided.
- Locker cabinets can function independently as stand alone units or as a multi unit configuration.
- Core removable locks can be provided on request.
- Master keys can be supplied for locks.
- Locks have 2,000 / 3,000 combinations (utilizing two keyways in each series).
- Ganging provisions can be incorporated on side panels for joining purpose.
- Locker cabinets are packed in completely knocked down condition.
- Cabinets can also be 100% factory built and shipped fully assembled.
- Thicker gauges of steel can be offered.
- Fastener free assembly ensures quick assembly without the use of screws or rivets.
- Thicker gauges of steel can be offered.
LOCK OPTIONS
Cam Lock
Latch Lock
Recessed Handle
cum Cam Lock
Numeric Lock
Digital Lock
Handle cum Lock
OPTIONAL ACCESSORIES
Coat Hook
PVC Label Holder
Formed Label Holder
Perforated Door
Hanger Rod
Sloping Top
Mirror
Formed Steel Legs
100 mm height
Adjustable Leveller
Locker Cabinet
| Sl. No. | Product | Packing Volume in CBM |
Product Dimensions in mm | ||
| H | W | D | |||
Packing volume (CKD) and product dimensions |
|||||
| 1 | LC 1 with perforated doors or louvres | 0.08 | 1,800 | 380 | 457 |
| 2 | LC 1 ES with perforated doors or louvres | 1,830 | 380 | 457 | |
| 3 | LC 2 with perforated doors or louvres | 1,830 | 380 | 457 | |
| 4 | LC 2 ES with perforated doors or louvres | 1,830 | 380 | 457 | |
| 5 | ‘Z’ LC 2 with perforated doors or louvres | 0.10 | 1,830 | 380 | 457 |
| 6 | LC 3 with perforated doors or louvres | 0.08 | 1,830 | 380 | 457 |
| 7 | LC 4 with perforated doors or louvres | 1,830 | 380 | 457 | |
| 8 | LC 5 with perforated doors or louvres | 1,830 | 380 | 457 | |
| 9 | LC 6 with perforated doors or louvres | 1,830 | 380 | 457 | |
| 10 | LC 1 x 2 with common top, common side, common back and common bottom | 0.15 | 1,830 | 610 | 457 |
| 11 | LC 2 x 2 with common top, common side, common back and common bottom | 1,830 | 610 | 457 | |
| 12 | LC 1 x 3 with common top, common side and common bottom | 0.21 | 1,830 | 1,140 | 457 |
| 13 | LC 2 x 3 with common top, common side and common bottom | 1,830 | 1,140 | 457 | |
| 14 | LC 4 x 3 with common top, common side and common bottom | 1,830 | 1,140 | 457 | |
| 15 | LC 6 x 3 with common top, common side and common bottom | 1,830 | 1,140 | 457 | |
| 16 | Extra LC shelf for all models of locker cabinets | 379 | 422 | ||
| 17 | Formed steel leg for all models of locker cabinets | 100 | |||
| 18 | Sloping top for one unit locker cabinet | 280 | 380 | 457 | |
| 19 | Sloping top for two units clustered locker cabinets | 280 | 760 | 457 | |
| 20 | Sloping top for three units clustered locker cabinets | 280 | 1,140 | 457 | |
