Vertical Filing Cabinet

Vertical filing cabinets, manufactured by us, are robust and practical and are built from durable components to withstand frequent use.

All drawers are mounted on double extension ball bearing slides which are smooth and easy to operate.

The drawers extend fully for convenient access to the whole drawer.

The cabinets are provided in three drawer widths to accommodate legal / foolscap, A4 and letter size files.

The vertical filing cabinet has been tested for strength, durability, stability and function to Australian Standard AS 5079.2 and to British Standards BS EN 14073 – 2 / 3, BS EN 14074 and BS 4875 – 7.

Certified in 2021
in USA

Certified in 2009
in UK

Certified in 2009 & 2014
in AUSTRALIA

Description

VFC 2

ر.ع.0.00

Two Drawers

Model Height Width Depth
VFC 2 LS / FS 710 (28.0”) 470 (18.5”) 620 (24.4”)
VFC 2 A4 710 (28.0”) 415 (16.3”) 620 (24.4”)
VFC 2 LES 710 (28.0”) 395 (15.6”) 620 (24.4”)

Measurements are in millimeters (approx. inches)
Clear selection
SKU: VFC-2 Category:

Description

VFC 3

ر.ع.0.00

Three Drawers

Model Height Width Depth
VFC 3 LS / FS 1,015 (40.0”) 470 (18.5”) 620 (24.4”)
VFC 3 A4 1,015 (40.0”) 415 (16.3”) 620 (24.4”)
VFC 3 LES 1,015 (40.0”) 395 (15.6”) 620 (24.4”)

Measurements are in millimeters (approx. inches)
Clear selection
SKU: VFC-3 Category:

Description

VFC 4

ر.ع.0.00

Four Drawers

Model Height Width Depth
VFC 4 LS / FS 1,320 (52.0”) 470 (18.5”) 620 (24.4”)
VFC 4 A4 1,320 (52.0”) 415 (16.3”) 620 (24.4”)
VFC 4 LES 1,320 (52.0”) 395 (15.6”) 620 (24.4”)

Measurements are in millimeters (approx. inches)
Clear selection
SKU: VFC-4 Category:

Description

VFC 5

ر.ع.0.00

Five Drawers

Model Height Width Depth
VFC 5 LS / FS 1,625 (64.0”) 470 (18.5”) 620 (24.4”)
VFC 5 A4 1,625 (64.0”) 415 (16.3”) 620 (24.4”)
VFC 5 LES 1,625 (64.0”) 395 (15.6”) 620 (24.4”)

Measurements are in millimeters (approx. inches)
Clear selection
SKU: VFC-5 Category:

Range of Colours

STANDARD COLOURS

NON STANDARD COLOURS

PREMIUM COLOURS

TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLOURS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON STANDARD, PREMIUM AND TEXTURE FINISH COLOURS.

KEY FEATURES

  • 10 years warranty as per clause.
  • Durable steel structure.
  • 30 kg and 45 kg ball bearing slides for uniformly distributed load for each drawer.
  • Drawers operate on full extension precision ball slides for smooth movement.
  • Suitable to store legal / foolscap, A4 and letter size files.
  • Full height drawer sides and back to provide additional storage capacity and added strength.
  • Full extension drawers for convenient access to the whole drawer.
  • Anti-tilt design allows one drawer to be opened at a time, thereby preventing the toppling over of the cabinet (product must be placed on level ground).
  • Anti rebound mechanism prevents drawer from coming out again after it is pushed in.

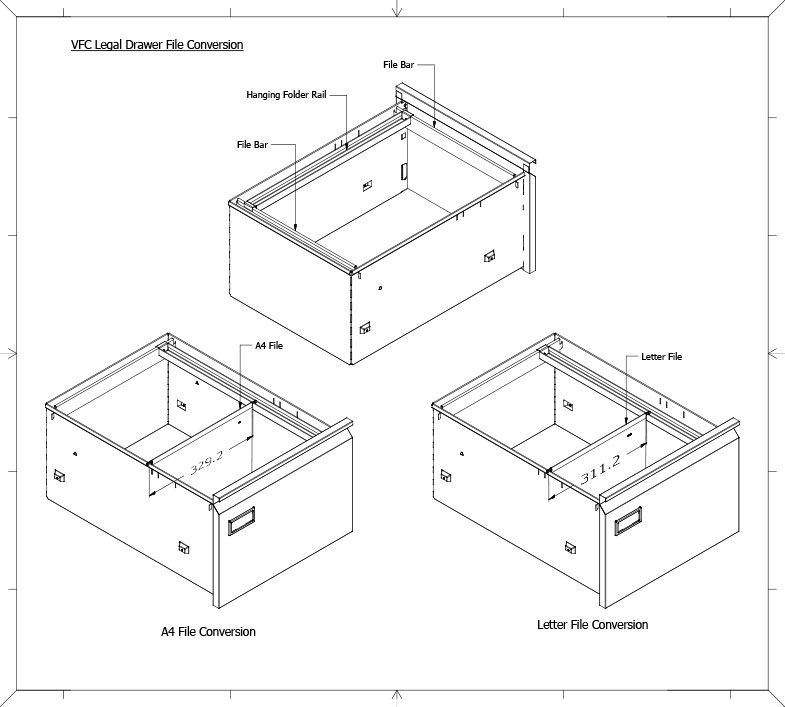

  • Legal/Foolscap vertical filing cabinet can also accommodate A4 and Letter size files with the incorporation of a cradle.
  • Security bar can be provided for each cabinet for additional protection.
  • Central cam lock controlling all drawers.
  • Core removable locks can be provided on request.
  • Master keys can be supplied for locks.
  • Locks have 1,000 / 3,000 combinations.
  • PVC or formed label holder for each drawer can be supplied on request.
  • Vertical filing cabinets are packed in completely knocked down condition.
  • Cabinets can also be 100% factory built and shipped fully assembled.
  • Thicker gauges of steel can be offered.
  • Fastener free assembly ensures quick assembly without the use of screws or rivets.

HANDLE OPTIONS

Rectangular
Recessed handle
RH

Formed Recessed handle
with strip for LS / FS models
FH

Swan neck
Recessed handle
SNH

LOCK OPTIONS

Cam Lock

Numeric Lock

Security Bar
with Padlock

OPTIONAL ACCESSORIES

PVC Label Holder

File Separator

Formed Label Holder

Vertical Filing Cabinet

Sl. No. Product Packing
Volume in CBM		 Product Dimensions in mm
H W D

Packing volume (CKD) and product dimensions
1 VFC 2 LES (Recessed/Swan neck) (Including Second Carton) 0.08 710 395 620
2 VFC 3 LES (Recessed/Swan neck) 0.09 1,015 395 620
3 VFC 4 LES (Recessed/Swan neck) 0.12 1,320 395 620
4 VFC 5 LES (Recessed/Swan neck) 0.15 1,625 395 620
5 VFC 2 A4 (Recessed/Swan neck) (Including Second Carton) 0.08 710 415 620
6 VFC 3 A4 (Recessed/Swan neck) 0.09 1,015 415 620
7 VFC 4 A4 (Recessed/Swan neck) 0.12 1,320 415 620
8 VFC 5 A4 (Recessed/Swan neck) 0.15 1,625 415 620
9 VFC 2 LS/FS (Recessed/Swan neck/Formed handle) (Including Second Carton) 0.08 710 470 620
10 VFC 3 LS/FS (Recessed/Swan neck/Formed handle) 0.09 1,015 470 620
11 VFC 4 LS/FS (Recessed/Swan neck/Formed handle) 0.12 1,320 470 620
12 VFC 5 LS/FS (Recessed/Swan neck/Formed handle) 0.15 1,625 470 620
13 Separator for VFC legal / foolscap size 259 402
14 Separator for VFC A4 size 259 347
15 Separator for VFC letter size 259 312
