Swing Door Storage Cabinet
A concealed storage solution is provided with our swing door cabinets.
These cabinets save floor space and are designed for maximum storage capacity.
The cabinets can be used for several purposes and are built from durable components to withstand frequent use.
Certified in 2009
in UK
Certified in 2009 & 2014
in AUSTRALIA
Godrej Khimji US > Storage Cabinets > Swing Door Storage Cabinets
Range of Colors
STANDARD COLORS
NON STANDARD COLORS
PREMIUM COLORS
TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLORS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON-STANDARD, PREMIUM AND TEXTURE FINISH COLORS, WHICH VARY BASED ON COLOR SELECTED AND QUANTITY ORDERED.
KEY FEATURES
- Limited lifetime warranty, per conditions
- Plain shelf / Dual-purpose shelf / Lateral rail
- Dual-purpose shelf can be used as a standard shelf and also for suspending files
- Lateral rails can be utilized for suspending files
- Each shelf is placed on five retaining clips, thereby providing additional rigidity and support
- Adjustable shelves at 1.3”, for convenient storage
- Uniformly-distributed load of 66 lbs per shelf
- Swing doors are secured by a 3-way bolting device and a recessed handle with lock
- Doors are fitted with heavy-duty invisible hinges for security and prevention of tampering from the outside. Internal hinges also enhance the appearance of the cabinet
- Doors are reinforced internally for extra strength
- Multiple-bend construction, thereby imparting greater rigidity and strength
- Formed steel legs with height of 3.9” can also be provided
- Core-removable locks can be provided on request
- Master keys can be supplied for all locks
- Locks have 3,000 combinations
- Mirror frame can be provided on the internal or external part of the door
- Sloping top can be provided for standard dimensions of the cabinet (36” W X 18.2” D)
- Alternate gauges of steel are available
LOCK OPTIONS
Recessed Handle cum Cam Lock (A)
Recessed Handle cum Cam Lock (B)
Numeric Lock
Latch Lock
OPTIONAL ACCESSORIES
Formed Steel Legs 3.9” height
Sloping Top
Security Bar with Padlock
ASSEMBLED PACKING VOLUME and PACKED PRODUCT DIMENSIONS
Swing Door Storage Cabinet
| Sl. No. | Product | Packing Volume in Cubic Feet |
Packed Product Dimensions in Inches | ||
| H | W | D | |||
| 1 | HHC with 1 shelf | 18.2 | 38.7 | 38.7 | 21.0 |
| 2 | HHC with 2 shelves | 18.2 | 38.7 | 38.7 | 21.0 |
| 3 | HHC 1 and W/O doors | 18.2 | 38.7 | 38.7 | 21.0 |
| 4 | HHC 2 and W/O doors | 18.2 | 38.7 | 38.7 | 21.0 |
| 5 | HHC 1 HT(40.0”) | 20.1 | 42.8 | 38.7 | 21.0 |
| 6 | HHC 2 HT(40.0”) | 20.1 | 42.8 | 38.7 | 21.0 |
| 7 | FHC with 3 shelves | 35.2 | 74.8 | 38.7 | 21.0 |
| FHC with 4 shelves | 35.2 | 74.8 | 38.7 | 21.0 | |

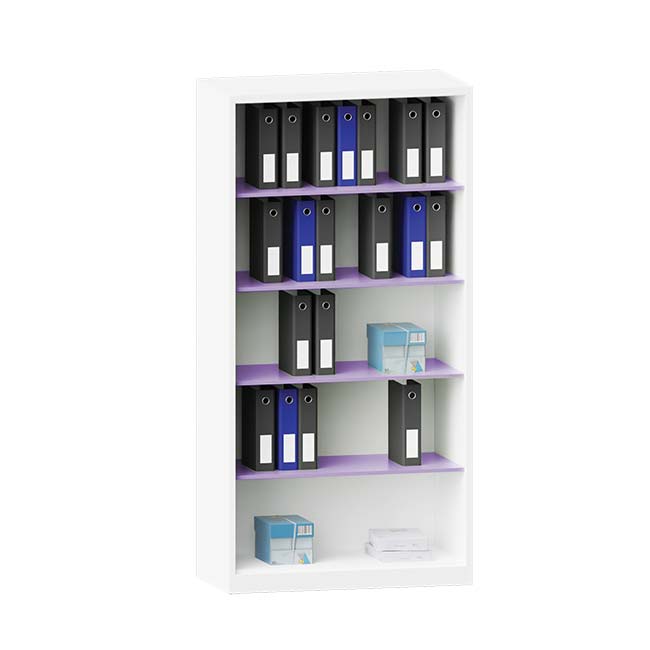

| 8 | FHC with 4 shelves and W/O doors | 33.2 | 74.8 | 38.7 | 21.0 |
| 9 | FHC with 4 shelves special depth (16.0”) | 31.4 | 74.8 | 38.7 | 18.7 |
| 10 | FHC with 4 shelves special height (76.8”) | 37.4 | 79.5 | 38.7 | 21.0 |
| 11 | FHC with 4 shelves special height (78.7”) | 44.6 | 81.5 | 42.1 | 22.4 |
| 12 | FHC with 2 shelves and hanging rod | 35.2 | 74.8 | 38.7 | 21.0 |
| 13 | FHC with 2 shelves and hanging rod, mirror frame on the door | 35.2 | 74.8 | 38.7 | 21.0 |
| 14 | FHC with full partition 4 half shelves, half hanging rod | 35.2 | 74.8 | 38.7 | 21.0 |
| 15 | FHC with fixed shelf, half centre partition, half locker, 3 half shelves, half hanging rod | 35.2 | 74.8 | 38.7 | 21.0 |
| 16 | FHC with full partition, 3 half shelves, half locker, half hanging rod, mirror frame on the door | 35.2 | 74.8 | 38.7 | 21.0 |
| 17 | FHC with full partition , 4 half shelves, half hanging rod, mirror frame on the door | 35.2 | 74.8 | 38.7 | 21.0 |
| 18 | FHC with fixed shelf, half partition, 2 half shelves, extension drawer, half hanging rod | 35.2 | 74.8 | 38.7 | 21.0 |
| 19 | Extra shelf for all models of cabinets | 38.6 | 19.6 | ||
| 20 | Extra half shelf for all models of cabinets | 20.6 | 19.1 | ||
| 21 | Mirror frame for FHC | 62.8 | 14.8 | ||
| 22 | Sloping top for FHC | 13.8 | 38.7 | 21 | |
| 23 | Formed steel leg for all models of cabinets | 6.7 | |||
