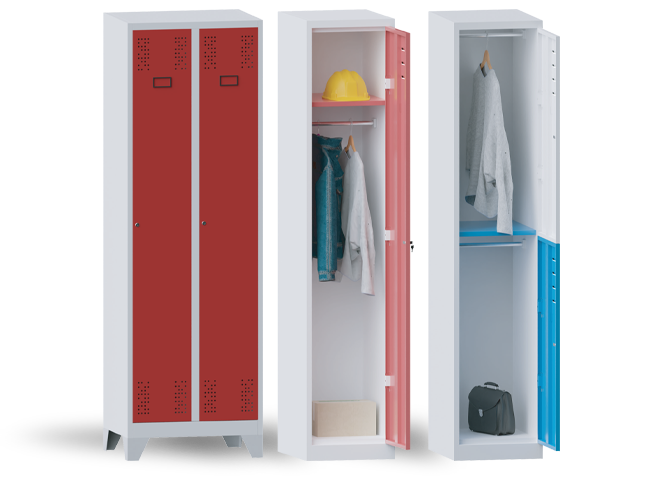

Locker Cabinet
Modern ventilation concepts and a variety of locking systems define the locker cabinets offered by Godrej & Khimji.
These locker cabinets provide a functional solution for securing personal storage in offices, factories, schools, universities, health facilities, fitness clubs and other commercial properties.

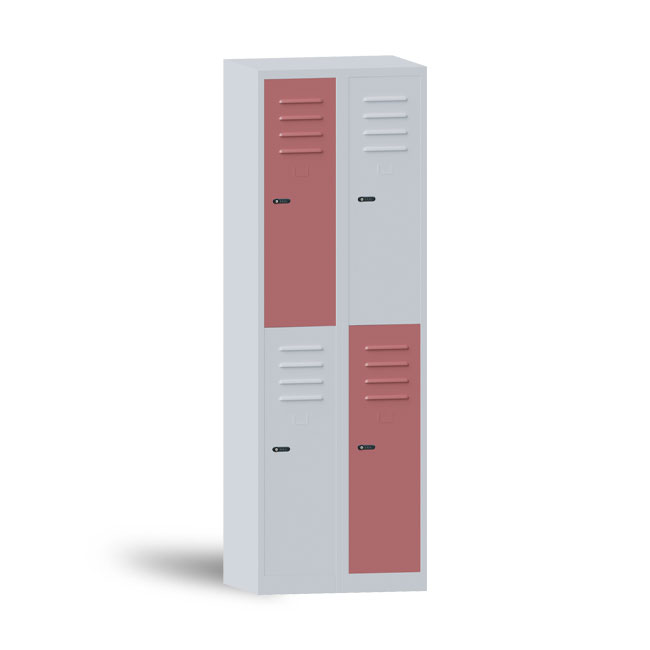

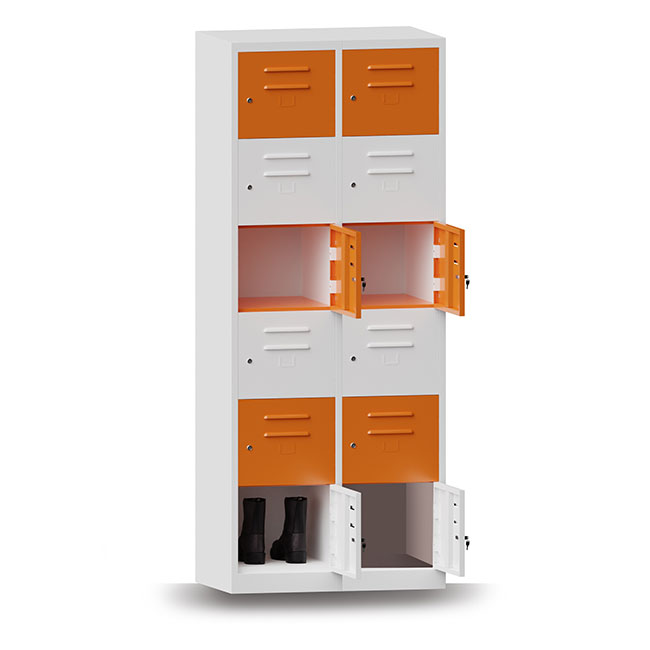

The product range incorporates the combination of modules with a choice of single, two, three, four, five six door compartments.
Certified in 2009
in UK
Certified in 2009 & 2014
in AUSTRALIA
Godrej Khimji US > Storage Cabinets > Locker Cabinets
Range of Colors
STANDARD COLORS
NON STANDARD COLORS
PREMIUM COLORS
TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLORS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON-STANDARD, PREMIUM AND TEXTURE FINISH COLORS, WHICH VARY BASED ON COLOR SELECTED AND QUANTITY ORDERED.
KEY FEATURES
- Limited lifetime warranty, per conditions
- Standard locker cabinets are also available in widths of 12.0” and 18.0” and depths of 12.0” and 18.0”
- Door is provided with ventilation louvers / cluster holes, a label holder and a cam lock
- Doors are fitted with heavy-duty invisible hinges for security and prevention of tampering from the outside. Internal hinges also enhance the appearance of the locker cabinet
- Doors are reinforced internally for extra strength
- Doors are fitted with PVC bangers for quiet operation
- Sloping top can be provided for standard dimensions of the locker cabinet 15.0” w x 18.0” d
- Formed steel legs with height of 3.9” can also be provided
- Locker cabinets can function independently as stand alone units or in a multi-unit configuration
- Core-removable locks can be provided on request
- Master keys can be supplied for all locks
- Locks have 3,000 combinations (utilizing two keyways in each series)
- Alternate gauges of steel are available
GANGING
- All locker cabinets of various depths must be ganged to another locker cabinet or an adjacent cabinet or anchored to a fixed wall for compliance with applicable ANSI / BIFMA X 5.6 Storage Standards.
- At the time of ordering, specify
- NG – No ganging and no surcharge
- WG – With ganging – Cabinets drilled on both sides and with ganging hardware. Add a surcharge of $5 for each cabinet.
- Locker cabinets, specified for ganging, will be pre punched or drilled through on both sides of the cabinets and will be provided with ganging hardware for one side. For end units, wherever required, ‘no ganging’ must be specified to avoid pre punching or drilling of holes on the extreme end sides.
LOCK OPTIONS
Cam Lock
Latch Lock
Recessed Handle
with cum Cam Lock
Recessed Handle
with Cam Lock (B)
Numeric Lock
Digital Lock
OPTIONAL ACCESSORIES
PVC Label Holder
Formed Label Holder
Perforated Door
Hanger Rod
Sloping Top
Mirror
Formed Steel Legs
3.9″ height
Adjustable Leveller
ASSEMBLED PACKING VOLUME and PACKED PRODUCT DIMENSIONS
Locker Cabinet
| Sl. No. | Product | Packing Volume in Cubic Feet |
Packed Product Dimensions in Inches | ||
| H | W | D | |||
| 1 | LC 1 with perforated doors or louvres | 15.9 | 74.8 | 17.7 | 20.7 |
| 2 | LC 1 ES with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 3 | LC 2 with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 4 | LC 2 ES with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 5 | ‘Z’ LC 2 with perforated doors or louvres | 16.0 | 74.8 | 17.7 | 20.7 |
| 6 | LC 3 with perforated doors or louvres | 15.9 | 74.8 | 17.7 | 20.7 |
| 7 | LC 4 with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 8 | LC 5 with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 9 | LC 6 with perforated doors or louvres | 74.8 | 17.7 | 20.7 | |
| 10 | LC 1 x 3 with common top, common side and common bottom | 42.7 | 74.8 | 47.6 | 20.7 |
| 11 | LC 2 x 3 with common top, common side and common bottom | 74.8 | 47.6 | 20.7 | |
| 12 | LC 4 x 3 with common top, common side and common bottom | 74.8 | 47.6 | 20.7 | |
| 13 | LC 6 x 3 with common top, common side and common bottom | 74.8 | 47.6 | 20.7 | |
| 14 | Extra LC shelf for all models of locker cabinets | 17.7 | 19.4 | ||
| 15 | Formed steel leg for all models of locker cabinets | 6.7 | |||
| 16 | Sloping top for one unit locker cabinet | 13.8 | 17.7 | 20.7 | |
| 17 | Sloping top for two adjacent locker cabinets | 13.8 | 32.7 | 20.7 | |
| 18 | Sloping top for three adjacent locker cabinets | 13.8 | 47.6 | 20.7 | |
