Vertical Filing Cabinet
Our vertical filing cabinets are robust and practical and are built from durable components to withstand frequent use.
All drawers are mounted on double extension ball bearing slides which are smooth and easy to operate.
The drawers extend fully for convenient access to the whole drawer.
The cabinets are provided in two drawer widths to accommodate legal and letter size files.
Certified in 2021
in USA
Certified in 2009
in UK
Certified in 2009 & 2014
in AUSTRALIA
Godrej Khimji US > Filing Cabinets > Vertical Filing Cabinets
Range of Colors
STANDARD COLORS
NON STANDARD COLORS
PREMIUM COLORS
TEXTURE FINISH CAN BE PROVIDED FOR SOME RAL CODES.
COLORS AND RAL CODES SHOWN ABOVE ARE MERELY REPRESENTATIVE OF THE ACTUAL FINISHES.
ADDITIONAL CHARGES WILL BE APPLICABLE FOR NON-STANDARD, PREMIUM AND TEXTURE FINISH COLORS, WHICH VARY BASED ON COLOR SELECTED AND QUANTITY ORDERED.
KEY FEATURES
- Limited lifetime warranty, per conditions
- Durable steel structure
- 66 lbs and 99 lbs ball bearing slides for uniformly distributed load for each drawer
- Drawers operate on full-extension precision ball slides for smooth movement
- Suitable to store legal and letter size files
- Full height drawer sides and back to provide additional storage capacity and added strength
- Full-extension drawers for convenient access to the entire drawer
- Anti-tilt design allows one drawer to be opened at a time, thereby preventing the cabinet from tipping over (product must be placed on level ground)
- Anti-rebound mechanism prevents drawer from coming out again after it is pushed in

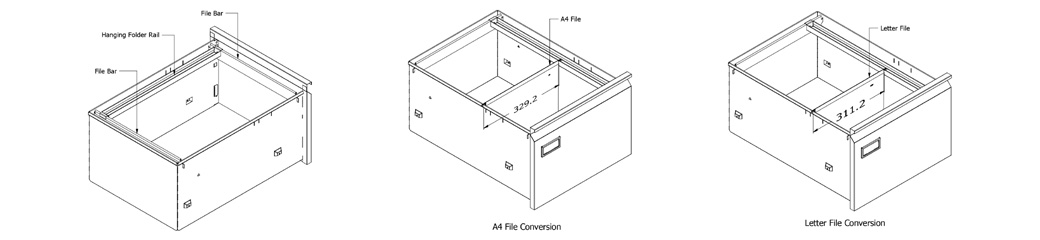

- Legal vertical filing cabinets can also accommodate letter size files with the incorporation of a cradle
- Security bar can be provided for each cabinet for additional protection
- Central cam lock controlling all drawers
- Core-removable locks can be provided on request
- Master keys can be supplied for all locks
- Locks have 3,000 combinations
- PVC, metal or formed label holder for each drawer can be supplied on request
- Alternate gauges of steel are available
HANDLE OPTIONS
Rectangular
Recessed handle
RH
Formed Recessed
handle with strip for
LS models FH
Swan neck
Recessed handle
SNH
Drawer pull handle with metal label holder
LOCK OPTIONS
Cam Lock
Numeric Lock
Security Bar
with Padlock
OPTIONAL ACCESSORIES
PVC Label Holder
File Separator
Formed Label Holder
ASSEMBLED PACKING VOLUME and PACKED PRODUCT DIMENSIONS
Vertical Filing Cabinet
| Sl. No. | Product | Packing Volume in Cubic Feet |
Packed Product Dimensions in Inches | ||
| H | W | D | |||
| 1 | VFC 2 LES (Rectangular Recessed / Swan Neck Recessed) | 8.8 | 30.7 | 18.3 | 27.2 |
| 2 | VFC 3 LES (Rectangular Recessed / Swan Neck Recessed) | 12.3 | 42.7 | 18.3 | 27.2 |
| 3 | VFC 4 LES (Rectangular Recessed / Swan Neck Recessed) | 15.7 | 54.7 | 18.3 | 27.2 |
| 4 | VFC 5 LES (Rectangular Recessed / Swan Neck Recessed) | 19.2 | 66.7 | 18.3 | 27.2 |
| 5 | VFC 2 LS (Rectangular Recessed / Swan Neck Recessed / Formed Recessed Handle) | 10.3 | 30.7 | 21.3 | 27.2 |
| 6 | VFC 3 LS (Rectangular Recessed / Swan Neck Recessed / Formed Recessed Handle) | 14.3 | 42.7 | 21.3 | 27.2 |
| 7 | VFC 4 LS (Rectangular Recessed/Swan Neck Recessed / Formed Recessed Handle) | 18.3 | 54.7 | 21.3 | 27.2 |
| 8 | VFC 5 LS (Rectangular Recessed/Swan Neck Recessed / Formed Recessed Handle) | 22.3 | 66.7 | 21.3 | 27.2 |
| 9 | Separator for VFC legal | 13.0 | 18.6 | ||
| 10 | Separator for VFC letter size | 13.0 | 15.0 | ||
